REFINEMENT FOR THE WILD CHILD
The SaTir was a mythical woodland spirit known to the Romans as equal parts mischief and momentum, built for adventure and never afraid of a good time. That spirit lives on in the Ritte SaTir, a gravel bike designed to go anywhere and do everything.

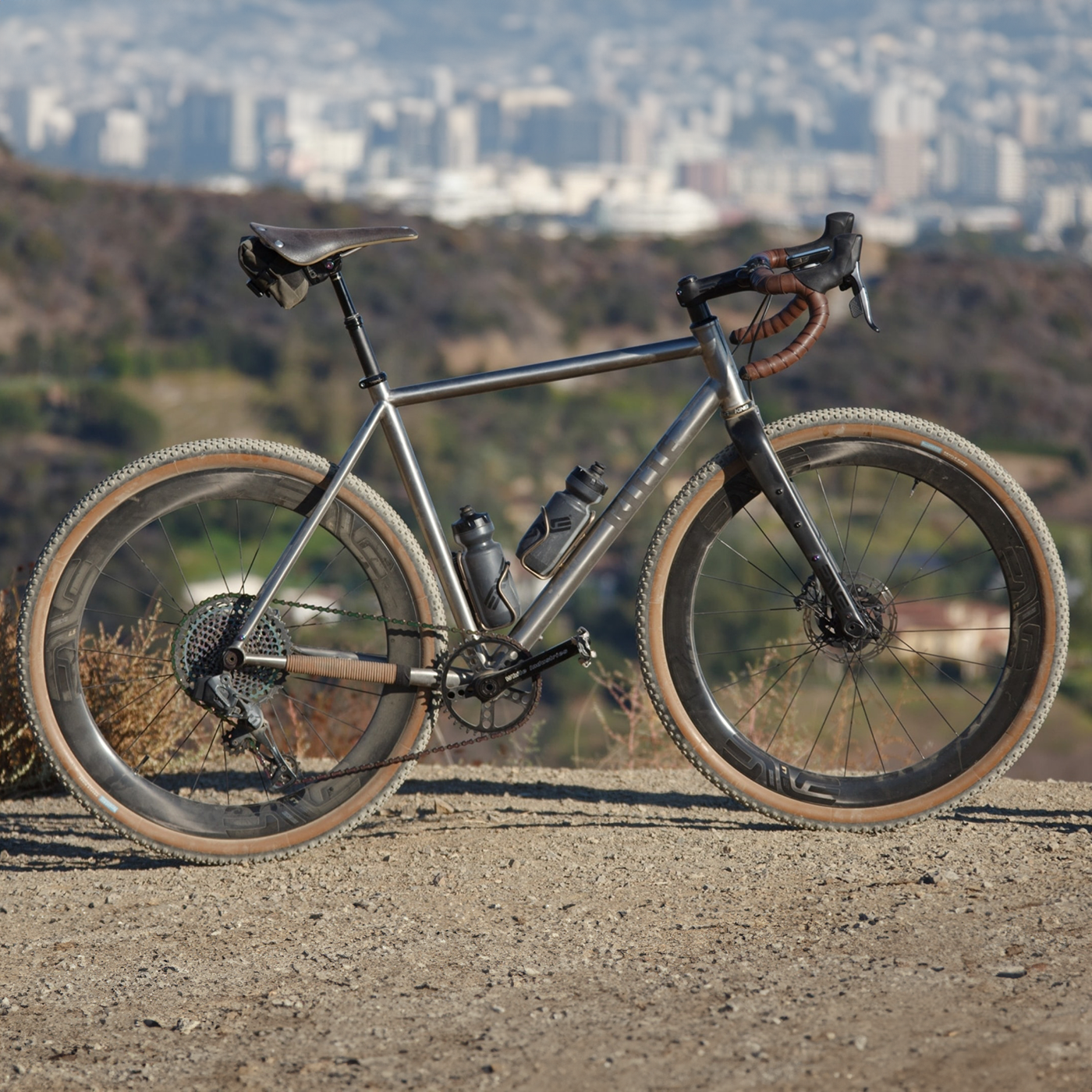

Now available Ready to Ride, the SaTir comes fully built and dialed so you can skip the guesswork and head straight for the dirt. With beautifully balanced handling, adjustable fork rake, full internal cable routing, and generous tire clearance, it’s built for long gravel hauls, fast mixed surface rides, and everything in between.
Crafted from premium titanium and assembled with carefully selected components, the Ready to Ride SaTir delivers the refinement, durability, and ride quality titanium is known for, without the wait of a full custom process.
This is the off road party, fully built and ready when you are.
GEOMETRY

| XS | S | M | L | XL | XXL | |
| ST(C-T) | 491 |
512 |
523 |
539 |
551 |
564 |
| Head Tube | 95 |
115 |
130 |
145 |
160 |
175 |
| Head Angle | 71 |
71.5 |
71.5 |
72 |
72 |
72.5 |
| Top Tube | 525 |
540 |
555 |
565 |
578 |
592 |
| Seat Angle | 74 |
73.5 |
73.5 |
73 |
72.5 |
72.5 |
| Stack | 530 |
547 |
559 |
577 | 588 |
604 |
| Reach | 372 |
376 |
388 |
388 |
392 |
401 |
| Wheelbase | 1011 |
1018 |
1035 |
1029 |
1039 |
1049 |
| BB Drop | 80 |
80 |
78 |
78 |
74 |
74 |
| RC | 435 |
435 |
435 |
435 |
435 |
435 |
| Fork Center |
589 |
596 |
612 |
606 |
615 |
624 |
| Fork Rake | 55 | 55 | 55 | 49 | 49 | 49 |
If you have any concern about fit or sizing please email us at support@ritteracing.com and we would be glad to make sure you get the best fitting bike possible.
ORDER PROCESS
Here’s how the Ready to Ride titanium (Ti) build process works:
- Select Your Build: Choose your SaTir configuration and size. Each Ready to Ride build is thoughtfully spec’d for performance, durability, and versatility across gravel and mixed terrain.
- Confirm Sizing: Not sure on size? We’re here to help. Share your height, inseam, and current bike details, and we’ll make sure you’re matched to the right fit.
- Choose Your Finish: Select from our standard titanium finishes including bead blasted, polished, or brushed. Custom finish upgrades may be available upon request.
- We Build & Dial It In: Your bike is professionally assembled, tuned, and inspected to ensure everything is running perfectly before it leaves our hands.
- Delivery: Your bike ships almost fully assembled. Simply rotate the handlebars, install the wheels, set your saddle height, and you’re ready to ride.
- Follow-Up Support: After delivery, we’re available for any setup questions to make sure your new SaTir performs exactly as intended.
Learn more about the Ritte purchase process >

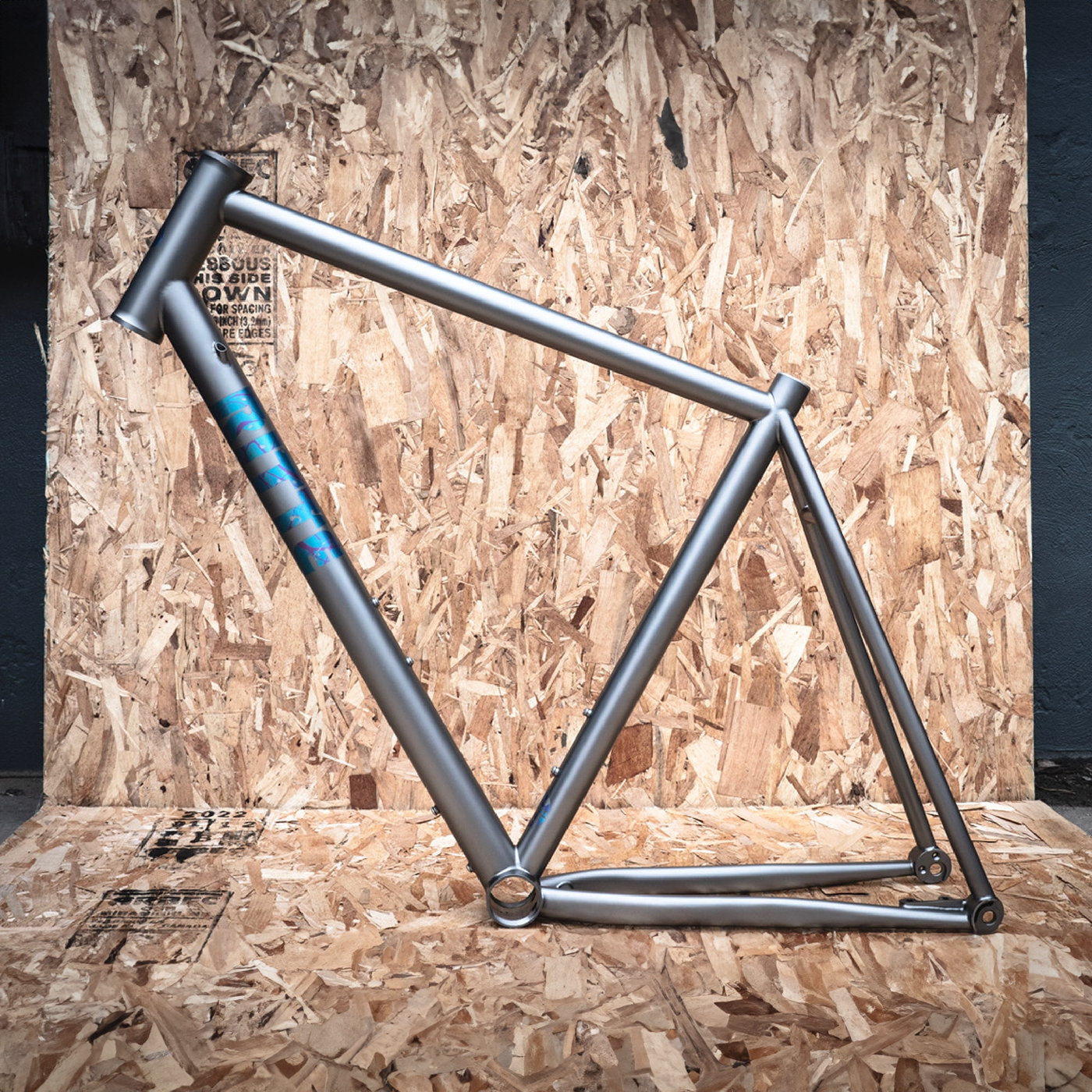

FRAMESET DETAILS
Proven handling geometry, premium titanium tubing, and thoughtful component selection define the Ready to Ride SaTir.
Each frame is built from an ultra-oversized titanium tube package designed for strength, durability, and the unmistakable ride quality titanium is known for. The tubing spec delivers a refined, responsive feel under power while remaining smooth and composed over long miles of gravel and mixed terrain.
We utilize a T47 threaded bottom bracket and IS headtube for durability and ease of maintenance. This is a bike built to go the distance.
All Ready to Ride builds come equipped with an Enve Road Disc fork for precise handling and confident braking performance.
Learn more about titanium and our titanium choices.
FRAME SPECIFICATIONS
The frame specifications below are the standard build specifications for the SaTir. Other options are available for custom builds so please contact us if you do not see what you're looking for below.
|
FRAME |
Ultra-oversized Grade 9 custom titanium tubing, hand built in the US |
| DROPOUT |
Ritte UDH 3D Printed Titanium Dropouts |
| FORK |
ENVE Adventure carbon fork |
| REAR AXLE |
Ritte lightweight axle for UDH |
| CABLE ROUTING |
Semi-internal through downtube |
| GROUPSET |
Compatible with all 11sp and newer road disc groups (mechanical and electronic) |
| CRANK / CHAINRINGS |
1x 38t to 46t or 2x WIDE 43/30 up to 46/33 and 48/31 |
| CASSETTE |
All standard 11sp and 12sp road or mountain cassettes |
| WHEELSET |
650B or 700C |
| TIRES |
650B: 47mm to 55mm/2.2" or 700C: 32mm to 50mm |
| HANDLEBAR |
Compatible with any 1 1/8" stem / handlebar |
| SEATPOST |
27.2mm round |
| HEADSET |
44m Titanium Headtube |
| BOTTOM BRACKET |
T47 - 68mm Threaded |
| WARRANTY |
Limited lifetime warranty |
FAQs
WHAT BUILDS ARE AVAILABLE?
Our Ready to Ride SaTir is available in the complete build options listed above, including Shimano GRX 1x Mechanical + Allovr and Rival XPLR + Erywhr configurations. Each build is thoughtfully selected to deliver performance, durability, and versatility for gravel and mixed terrain riding.
HOW LONG DOES IT TAKE?
Ready to Ride builds are typically completed and shipped within approximately six weeks. We assemble, inspect, and dial in each bike before it leaves our workshop to ensure it arrives ready for final setup and riding.
WHAT DOES IT WEIGH?
The titanium frame weighs approximately 1600g, depending on size. Complete bike weight varies by build specification. As always, our focus is on delivering exceptional ride quality, durability, and long-term performance rather than chasing a specific number on the scale.
