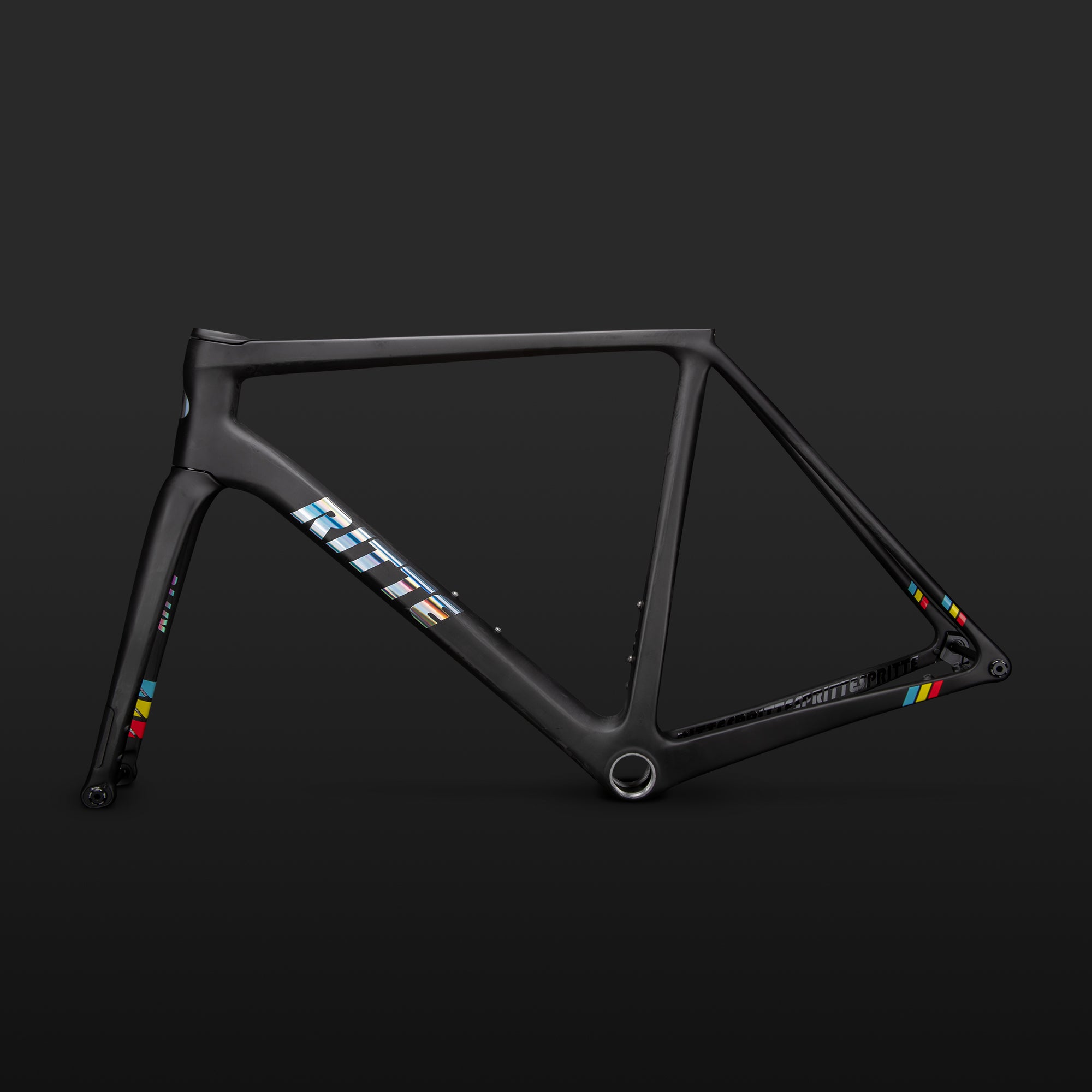

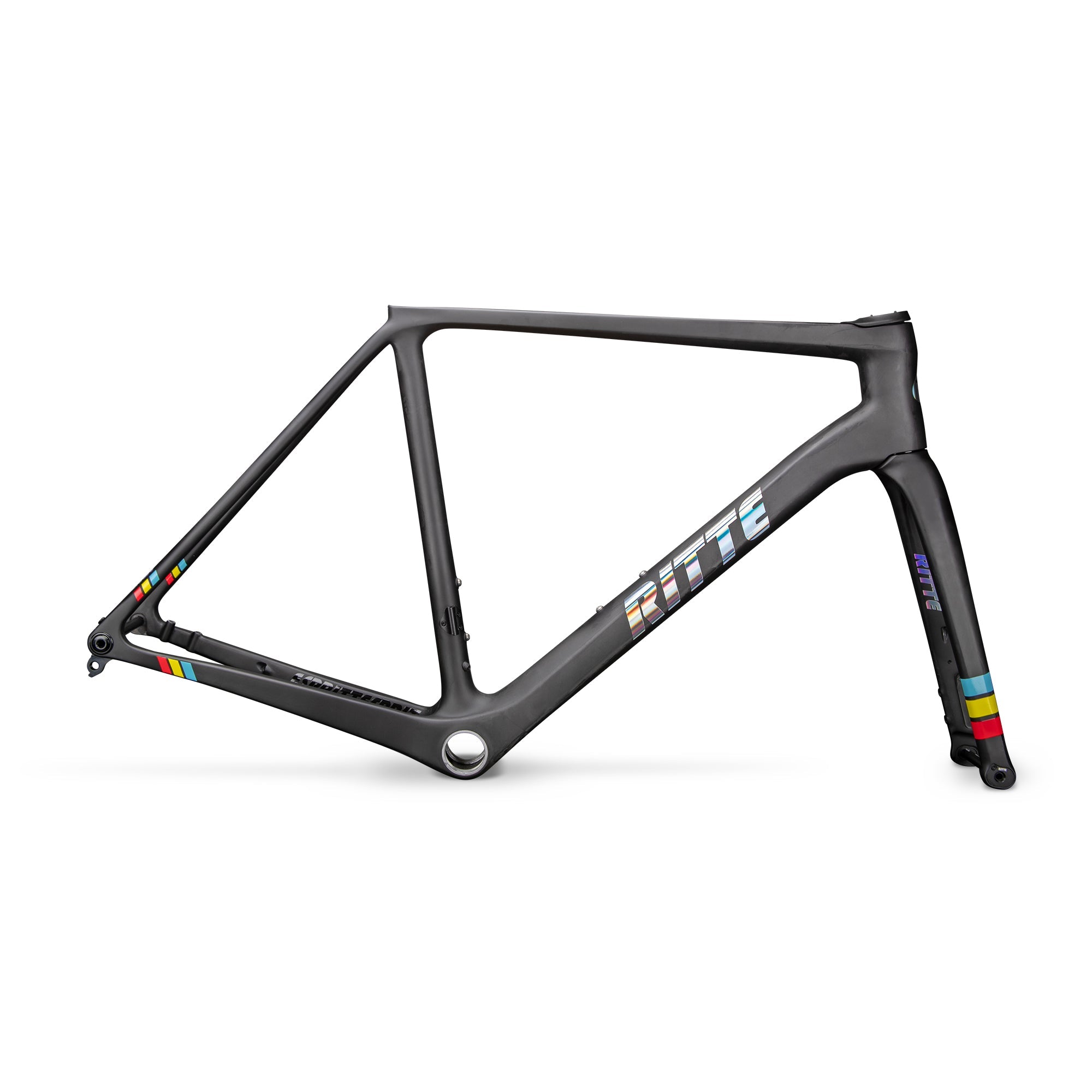

Esprit Classic - Frameset
Have a question about your build? We love hearing from you and guarantee we’ll call you back within 24 hours.
BUILD SPECIFICATIONS

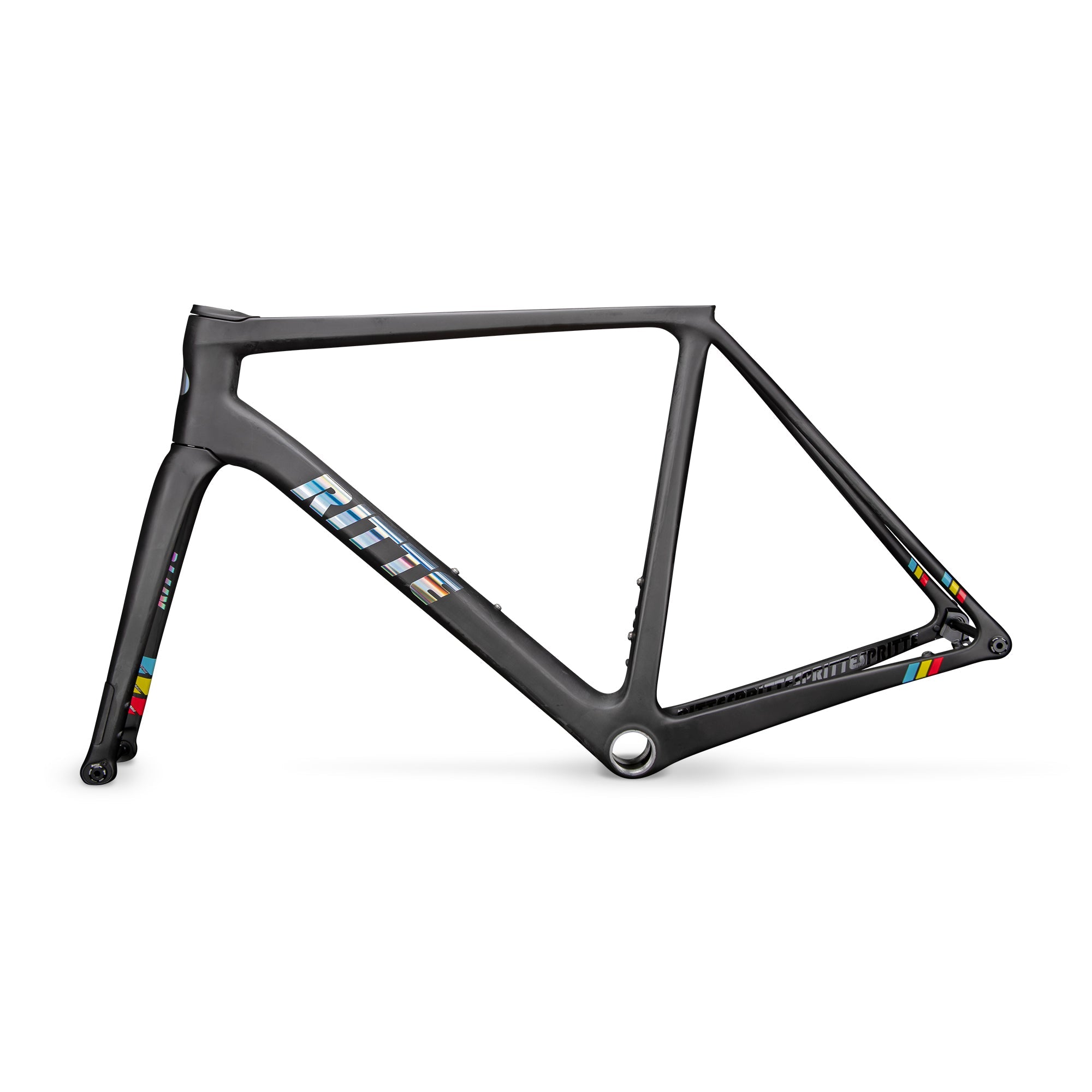

FRAMESET

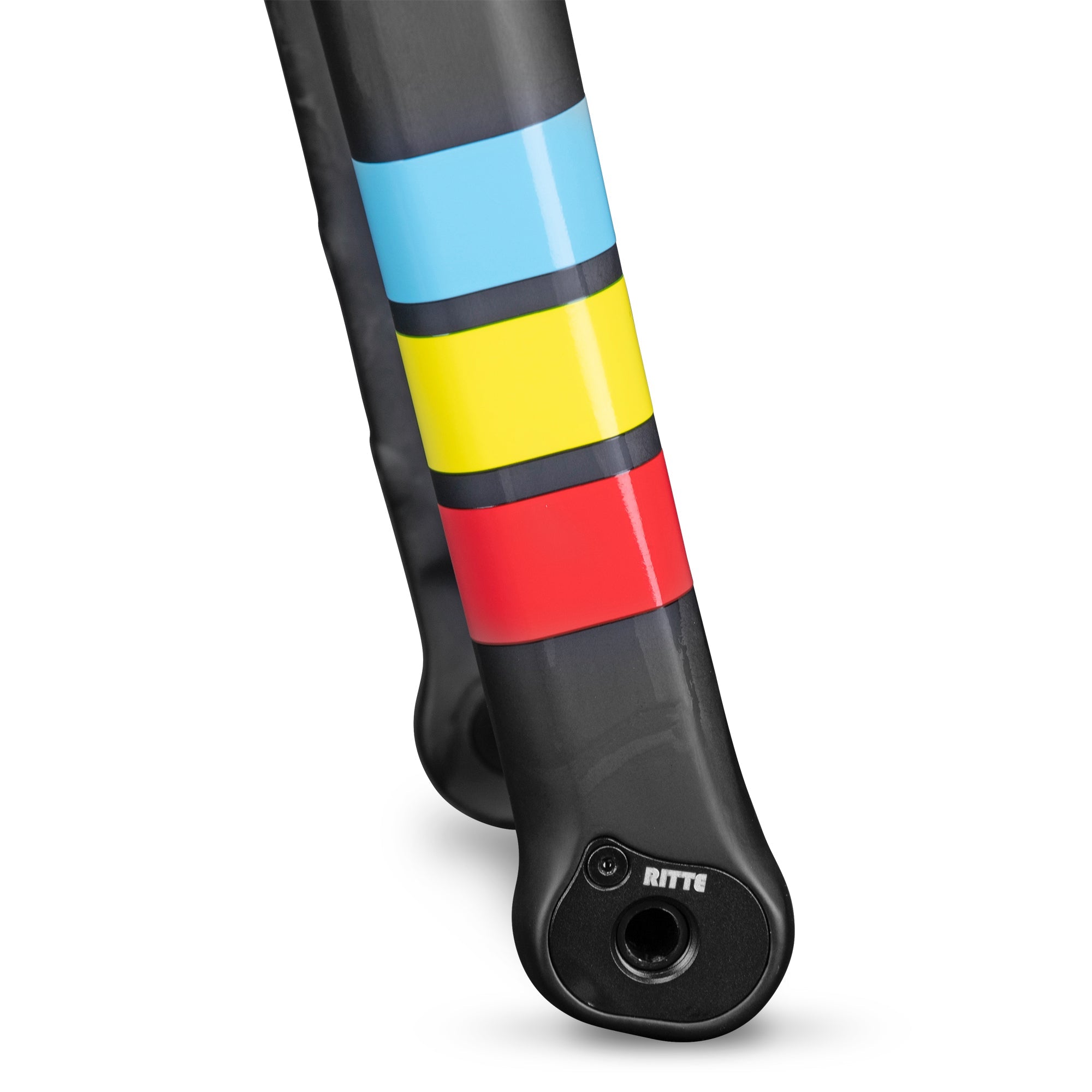

FRAME & FORK |
Blend of Toray Japan High Mod and Intermediate carbon fiber |
HEADSET |
Stainless Steel IS52 sealed bearing headset |
BOTTOM BRACKET |
T47 External |

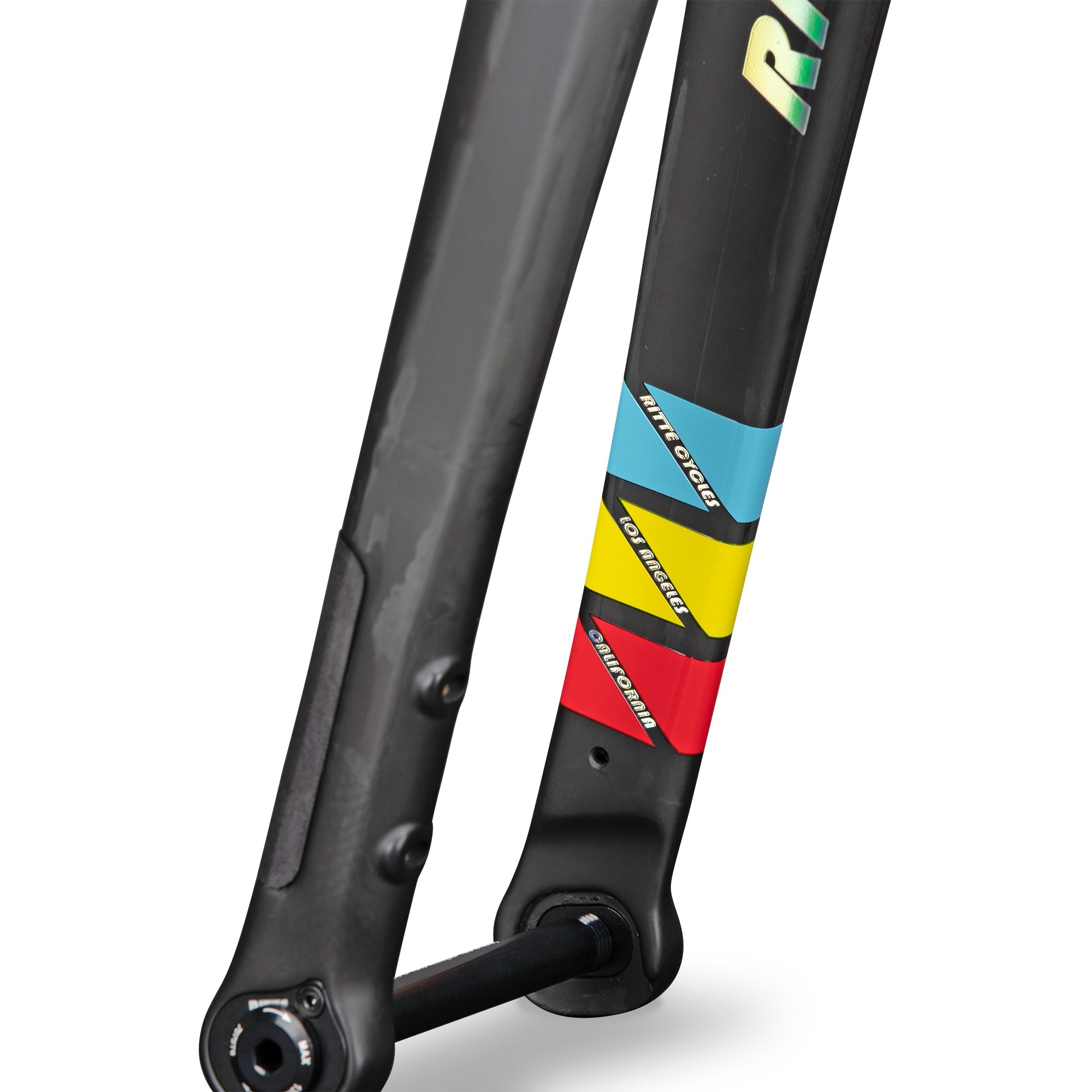

FRONT AXLE |
12mm x 100mm |

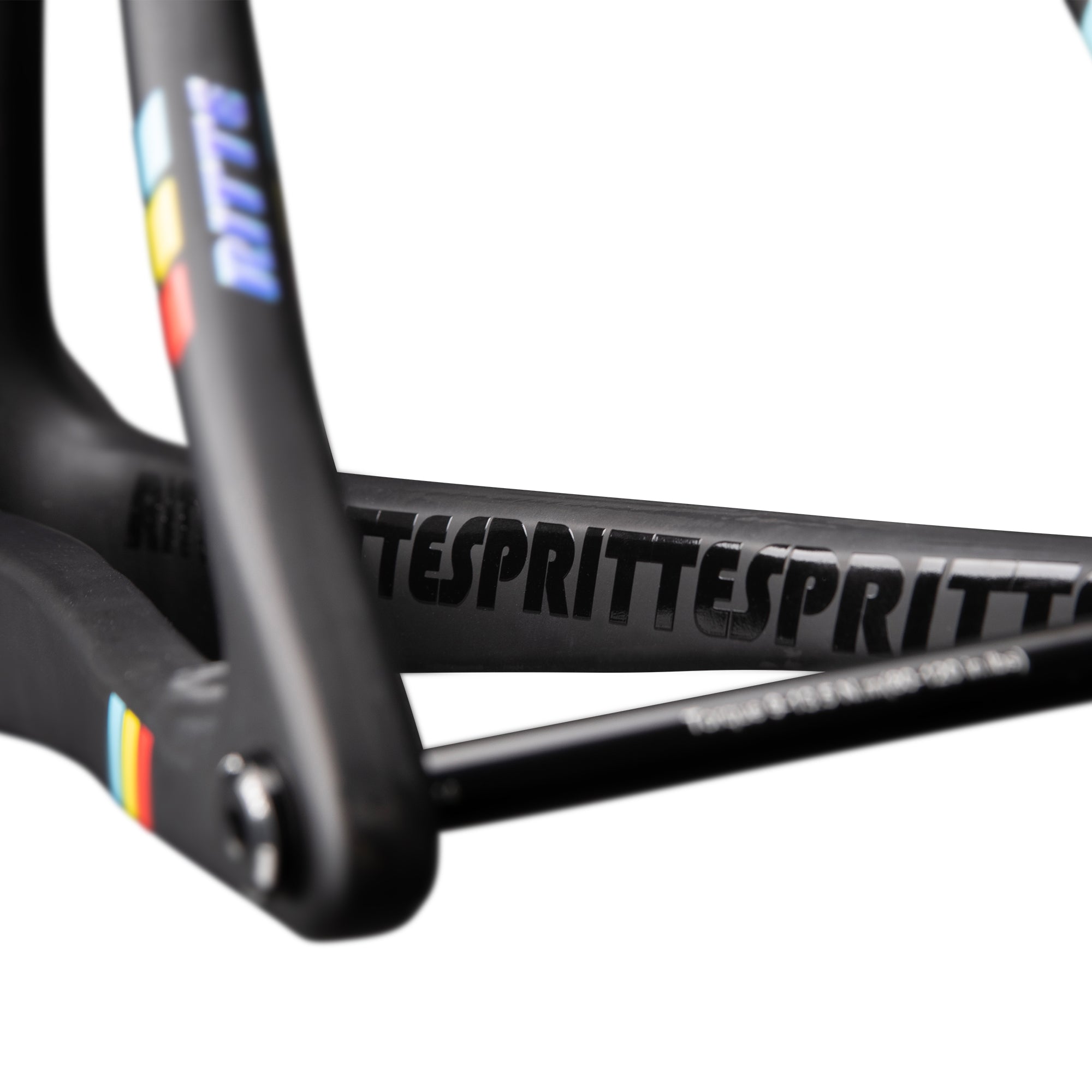

REAR AXLE |
12mm x 142mm |
BRAKE TYPE |
Hydraulic Disc - 160mm rotors front and rear |
CABLE ROUTING | Fully-internal |
WARRANTY | Limited Lifetime Warranty |
GEOMETRY
XS | S | M | L | XL | XXL | |
Seat Tube (Center-Top) | 428 |
463 |
499 |
512 |
528 |
547 |
Head Tube | 105 |
125 |
140 |
155 |
170 |
190 |
Head Angle | 72 |
72.5 |
73 |
73 |
73.5 |
74 |
Top Tube | 518 |
535 |
550 |
565 |
580 |
596 |
Seat Angle | 74.5 |
74 |
73.5 |
73 |
73 |
72.75 |
Stack | 513 |
532 |
549 |
562 | 579 |
598 |
Reach | 374 |
382 |
387 |
393 |
403 |
411 |
Wheelbase | 982 |
993 |
987 |
999 |
1006 |
1020 |
BB Drop | 76 |
74 |
74 |
72 |
72 |
70 |
Chainstay | 420 |
420 |
415 |
415 |
415 |
420 |
Fork Rake | 50 | 50 | 45 | 45 | 42 | 42 |
If you have any concern about fit or sizing please email us at support@ritteracing.com and we would be glad to make sure you get the best fitting bike possible.
FAQs
WILL THIS FRAME WORK WITH MECHANICAL GROUPSETS?
All modern road groupsets have gone electronic - to optimize for the most current technology, we’ve decided to fully embrace electronic shifting.
CAN I GET AN EXTRA DERAILLEUR HANGER?

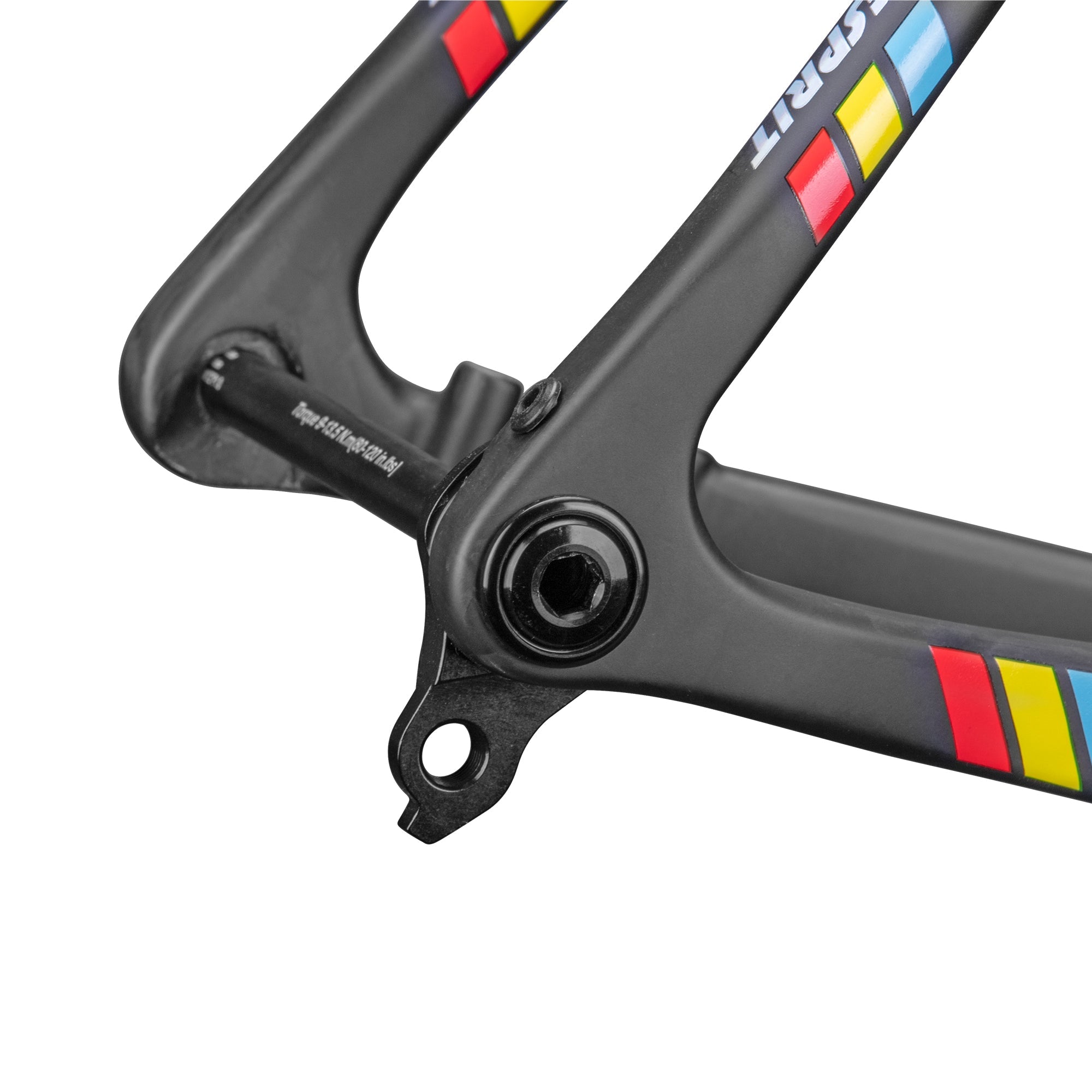

We chose to design for the SRAM UDH (Universal Derailleur Hanger) because replacement hangers are easily available globally in bike shops or online. Gone are the days of having to hunt for obscure replacement hangers.
WHAT DIFFERENCE DOES IT MAKE IF I CHANGE MY FORK RAKE WITH ONE OF THE “FLIP CHIPS”?
Great question, and one deserving more explanation. Click here for a larger discussion on geometry and handling, including why we use different fork rakes for different frame sizes. The short answer is your frame will come with the correct offset insert, and that is the one we recommend sticking with.
General Ritte FAQs can be found here
This product is rated 5.0 of 5.0 stars.
It has received 17 reviews.
